| PD1

Programmed cell death protein 1 (PD-1), (CD279 cluster of differentiation 279). PD-1 is a protein encoded by the PDCD1 gene.PD-1 is a cell surface receptor on T cells and B cells that has a role in regulating the immune system's response to the cells of the human body by down-regulating the immune system and promoting self-tolerance by suppressing T cell inflammatory activity. This prevents autoimmune diseases, but it can also prevent the immune system from killing cancer cells.PD-1 is an immune checkpoint and guards against autoimmunity through two mechanisms. First, it promotes apoptosis (programmed cell death) of antigen-specific T-cells in lymph nodes. Second, it reduces apoptosis in regulatory T cells (anti-inflammatory, suppressive T cells).


| Typical data

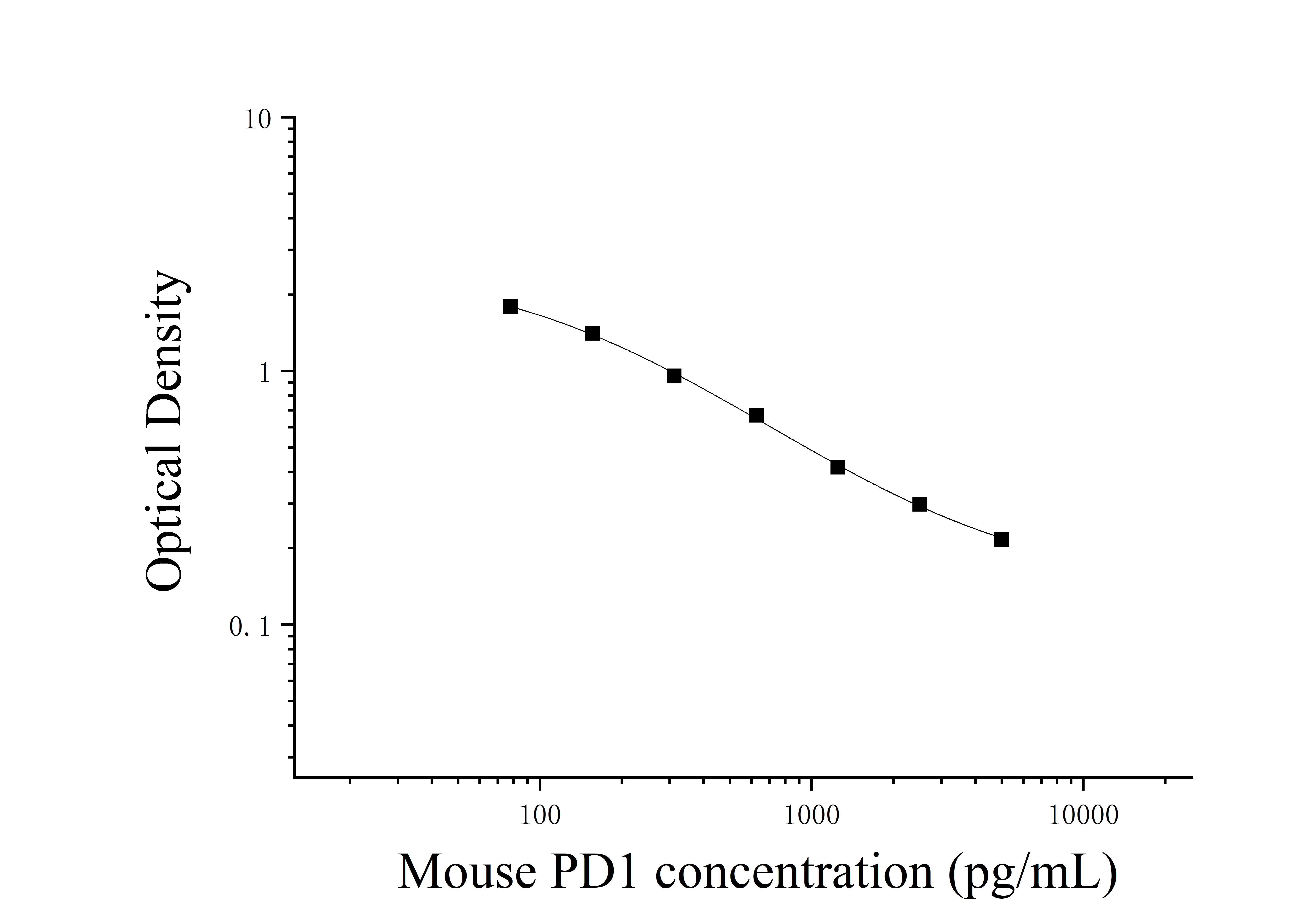

As the OD values of the standard curve may vary according to the conditions of the actual assay performance (e.g. operator, pipetting technique, wash technique or temperature effects), the operator should establish a standard curve for each test. Typical standard curve and data are provided below for reference only.



Concentration (pg/mL)	5000	2500	1250	625	312.5	156.25	78.12	0
OD	2.22	1.56	0.92	0.63	0.42	0.25	0.18	0.08
Corrected OD	2.14	1.48	0.84	0.55	0.34	0.17	0.1	-



| Repeatability

Intra-assay Precision (Precision within an assay)：CV% < 10%; Inter-assay Precision (Precision between assays)：CV% < 10%


| Recovery

The recovery of Mouse PD1 spiked at three different levels in samples throughout the range of the assay was evaluated in various matrices.



Sample Type	Range(%)	Average Recovery(%)
Tissue Homogenates(n=8)	84-101	96
Cell Culture Supernates(n=8)	96-108	105



| Linearity

Samples were spiked with high concentrations of Mouse PD1 and diluted with Universal Diluent to produce samples with values within the range of the assay.



		Tissue Homogenates(n=4)	Cell Culture Supernates(n=4)
1 : 2	Range (%)	84-95	90-110
	Average (%)	91	96
1 : 4	Range (%)	89-103	105-115
	Average (%)	94	108
