| PHD2

Hypoxia-inducible factor prolyl hydroxylase 2 (HIF-PH2), or prolyl hydroxylase domain-containing protein 2 (PHD2), is an enzyme encoded by the EGLN1 gene. It is also known as Egl nine homolog 1.PHD2 is a α-ketoglutarate/2-oxoglutarate-dependent hydroxylase, a superfamily non-haem iron-containing proteins.PHD2 is a 46-kDa enzyme that consists of an N-terminal domain homologous to MYND zinc finger domains, and a C-terminal domain homologous to the 2-oxoglutarate dioxygenases. The catalytic domain consists of a double-stranded β-helix core that is stabilized by three α-helices packed along the major β-sheet.


| Typical data

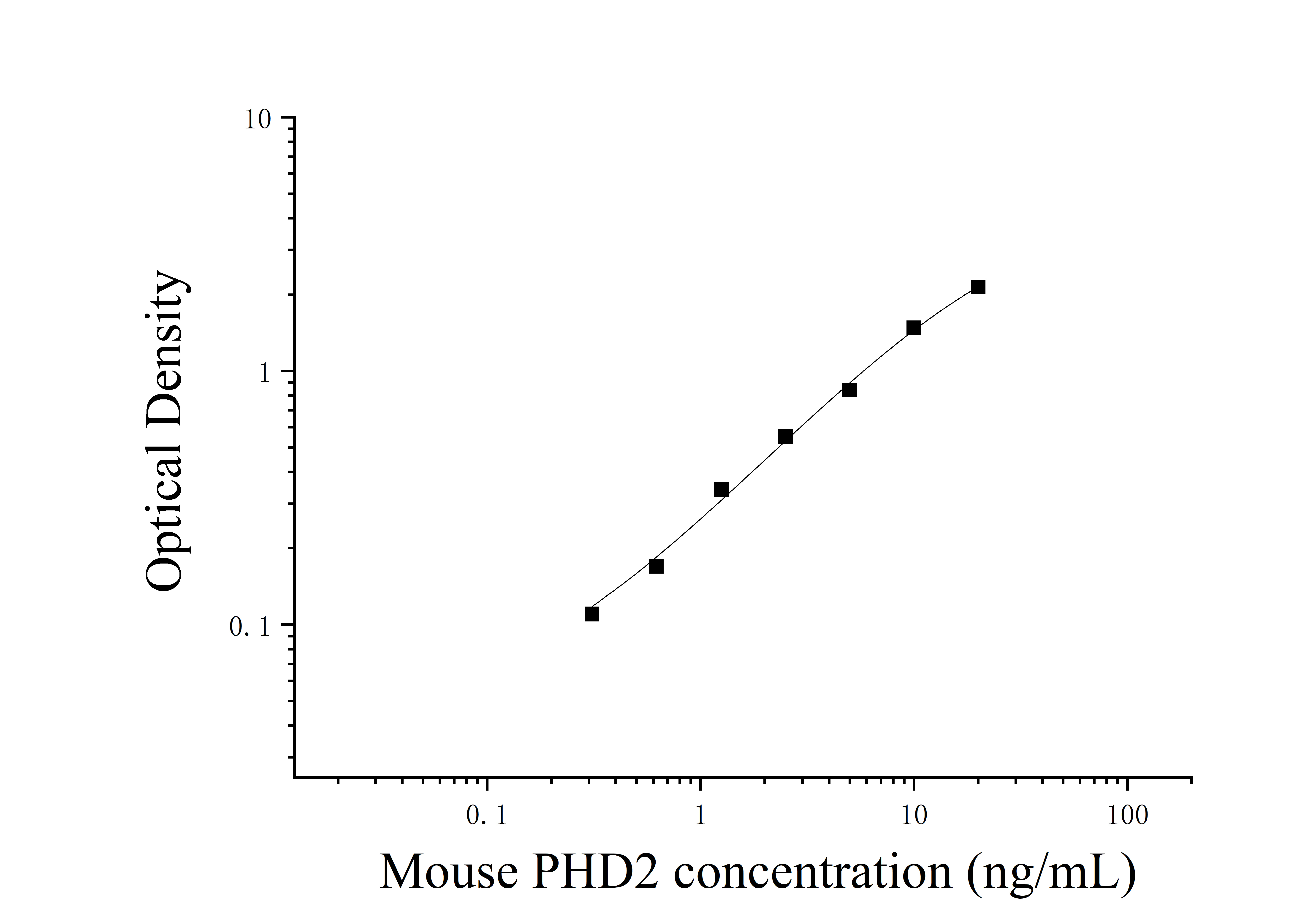

As the OD values of the standard curve may vary according to the conditions of the actual assay performance (e.g. operator, pipetting technique, wash technique or temperature effects), the operator should establish a standard curve for each test. Typical standard curve and data are provided below for reference only.



Concentration (ng/mL)	20	10	5	2.5	1.25	0.625	0.312	0
OD	2.22	1.56	0.92	0.63	0.42	0.25	0.18	0.08
Corrected OD	2.14	1.48	0.84	0.55	0.34	0.17	0.1	-



| Repeatability

Intra-assay Precision (Precision within an assay)：CV% < 10%; Inter-assay Precision (Precision between assays)：CV% < 10%


| Recovery

The recovery of Mouse PHD2 spiked at three different levels in samples throughout the range of the assay was evaluated in various matrices.



Sample Type	Range(%)	Average Recovery(%)
Tissue Homogenates(n=8)	84-101	96
Cell Lysates(n=8)	96-108	105



| Linearity

Samples were spiked with high concentrations of Mouse PHD2 and diluted with Universal Diluent to produce samples with values within the range of the assay.



		Tissue Homogenates(n=4)	Cell Lysates(n=4)
1 : 2	Range (%)	88-96	90-110
	Average (%)	93	96
1 : 4	Range (%)	87-108	105-115
	Average (%)	98	108
