| CD226

CD226 (Cluster of Differentiation 226), PTA1 (outdated term, 'platelet and T cell activation antigen 1') or DNAM-1 (DNAX Accessory Molecule-1) is a ~65 kDa immunoglobulin-like transmembrane glycoprotein expressed on the surface of natural killer cells, NK T cell, B cells, dendritic cells, hematopoietic precursor cells, platelets, monocytes and T cells.


| Typical data

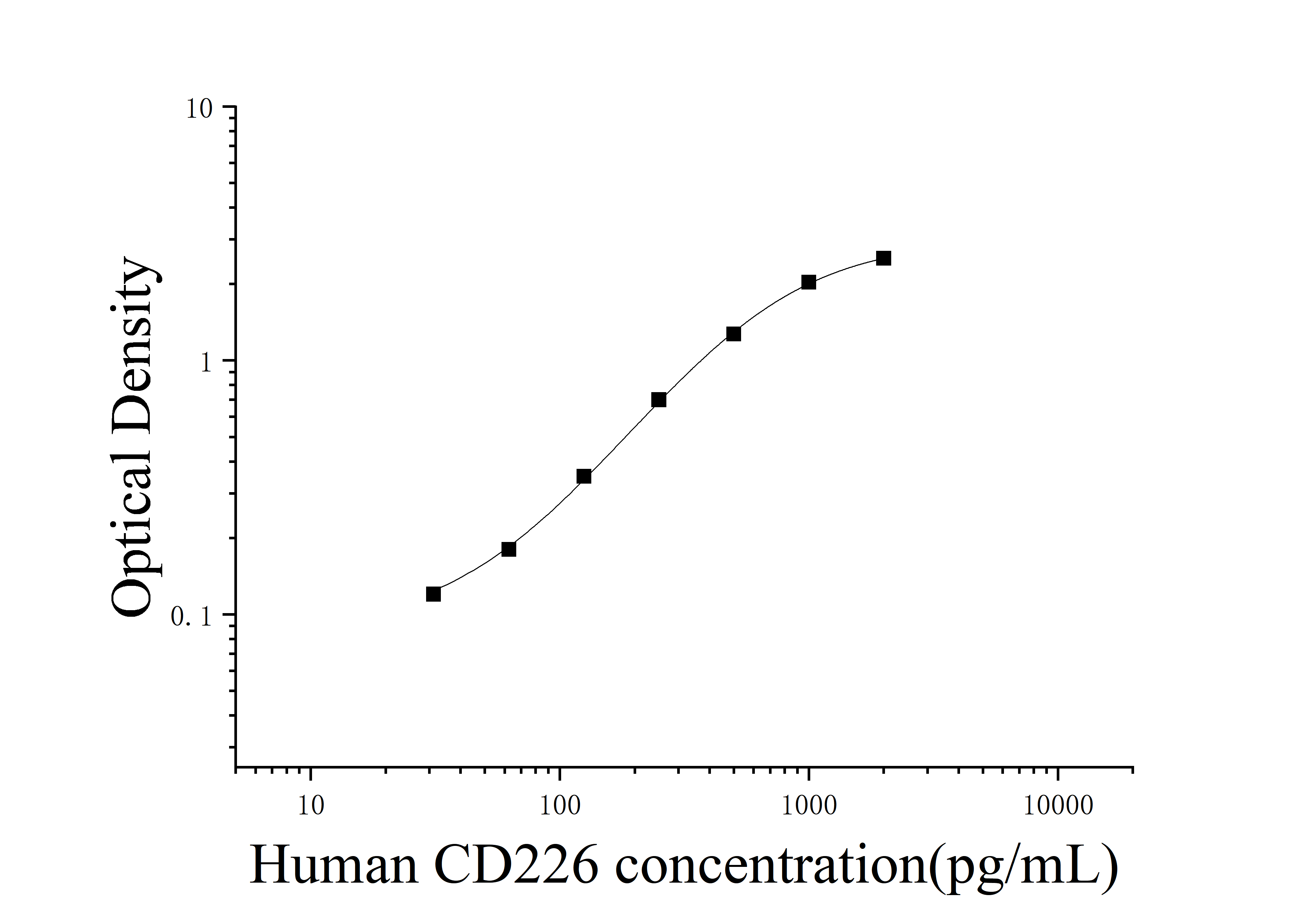

As the OD values of the standard curve may vary according to the conditions of the actual assay performance (e.g. operator, pipetting technique, wash technique or temperature effects), the operator should establish a standard curve for each test. Typical standard curve and data are provided below for reference only.



Concentration (pg/mL)	2000	1000	500	250	125	62.5	31.2	0
OD	2.61	2.12	1.36	0.79	0.44	0.27	0.21	0.09
Corrected OD	2.52	2.03	1.27	0.7	0.35	0.18	0.12	-



| Repeatability

Intra-assay Precision (Precision within an assay)：CV% < 10%; Inter-assay Precision (Precision between assays)：CV% < 10%


| Recovery

The recovery of Human CD226 spiked at three different levels in samples throughout the range of the assay was evaluated in various matrices.



Sample Type	Range(%)	Average Recovery(%)
Serum(n=8)	84-101	96
Plasma(n=8)	92-105	102
Tissue Homogenates(n=8)	96-108	105



| Linearity

Samples were spiked with high concentrations of Human CD226 and diluted with Universal Diluent to produce samples with values within the range of the assay.



		Serum(n=4)	Plasma(n=4)	Tissue Homogenates(n=4)
1 : 2	Range (%)	84-95	88-96	90-110
	Average (%)	91	93	96
1 : 4	Range (%)	89-103	88-108	105-115
	Average (%)	94	98	108
