| TAK1

Mitogen-activated protein kinase kinase kinase 7 (MAP3K7), also known as TAK1, is an enzyme that is encoded by the MAP3K7 gene. TAK1 is an evolutionarily conserved kinase in the MAP3 K family and clusters with the tyrosine-like and sterile kinase families. The protein structure of TAK1 contains an N (residues 1–104)- and C (residues 111–303)-terminus connected through the hinge region (Met 104-Ser 111). The ATP binding pocket is located in the hinge region of the kinase. Additionally, TAK1 has a catalytic lysine (Lys63) in the active site. Crystal structure of TAK1-ATP have shown that ATP forms two hydrogen bonds with residues Ala 107 and Glu 105.


| Typical data

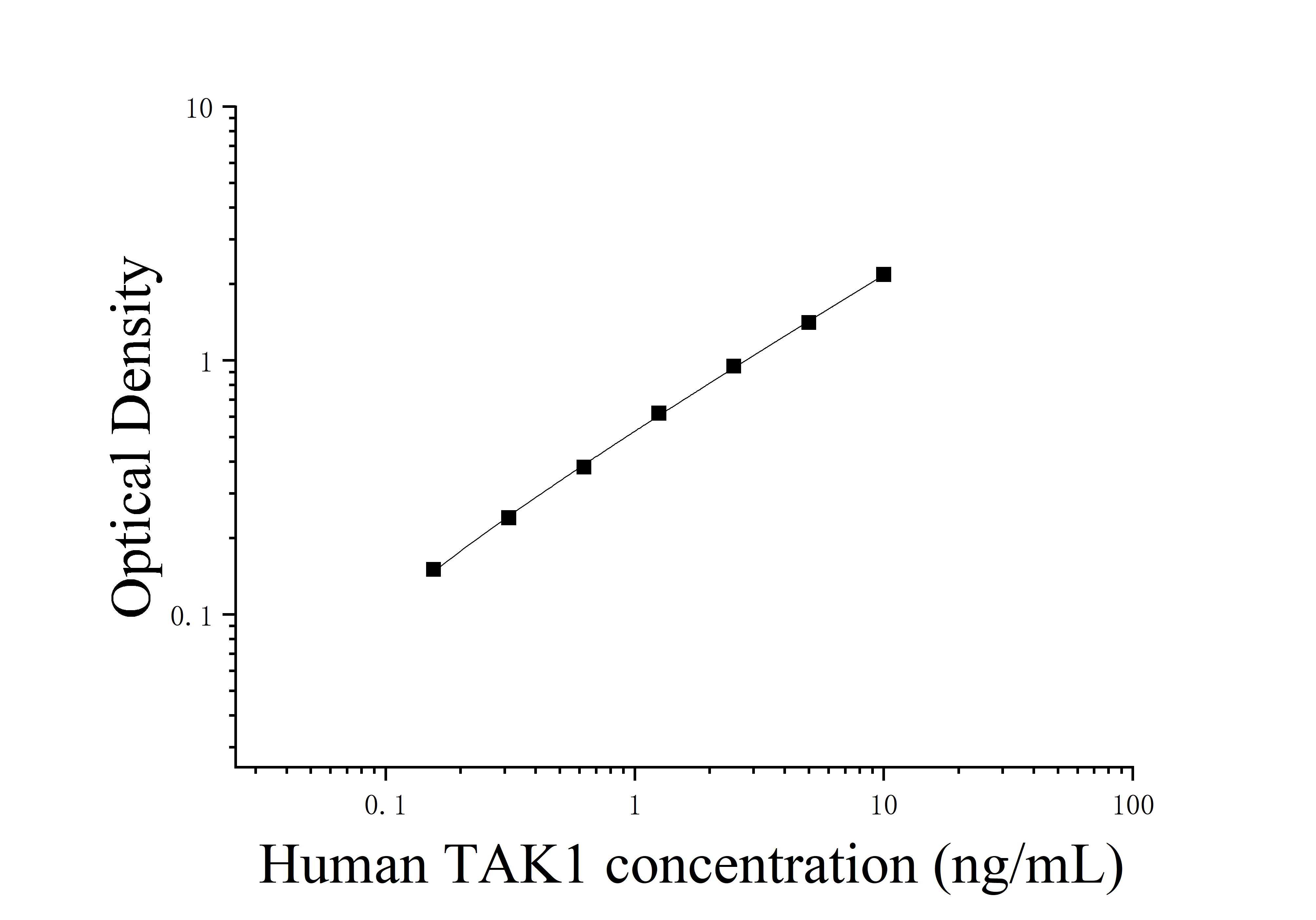

As the OD values of the standard curve may vary according to the conditions of the actual assay performance (e.g. operator, pipetting technique, wash technique or temperature effects), the operator should establish a standard curve for each test. Typical standard curve and data are provided below for reference only.



Concentration (ng/mL)	10	5	2.5	1.25	0.625	0.312	0.156	0
OD	2.26	1.49	1.03	0.7	0.46	0.32	0.23	0.08
Corrected OD	2.18	1.41	0.95	0.62	0.38	0.24	0.15	-



| Repeatability

Intra-assay Precision (Precision within an assay)：CV% < 10%; Inter-assay Precision (Precision between assays)：CV% < 10%


| Recovery

The recovery of Human TAK1 spiked at three different levels in samples throughout the range of the assay was evaluated in various matrices.



Sample Type	Range(%)	Average Recovery(%)
Tissue Homogenates(n=8)	84-101	96
Cell Culture Supernates(n=8)	96-107	104



| Linearity

Samples were spiked with high concentrations of Human TAK1 and diluted with Universal Diluent to produce samples with values within the range of the assay.



		Tissue Homogenates(n=4)	Cell Culture Supernates(n=4)
1 : 2	Range (%)	84-95	90-110
	Average (%)	91	96
1 : 4	Range (%)	89-103	105-115
	Average (%)	94	108
